Axminster O’Donnell Dovetail Jaws – 25mm

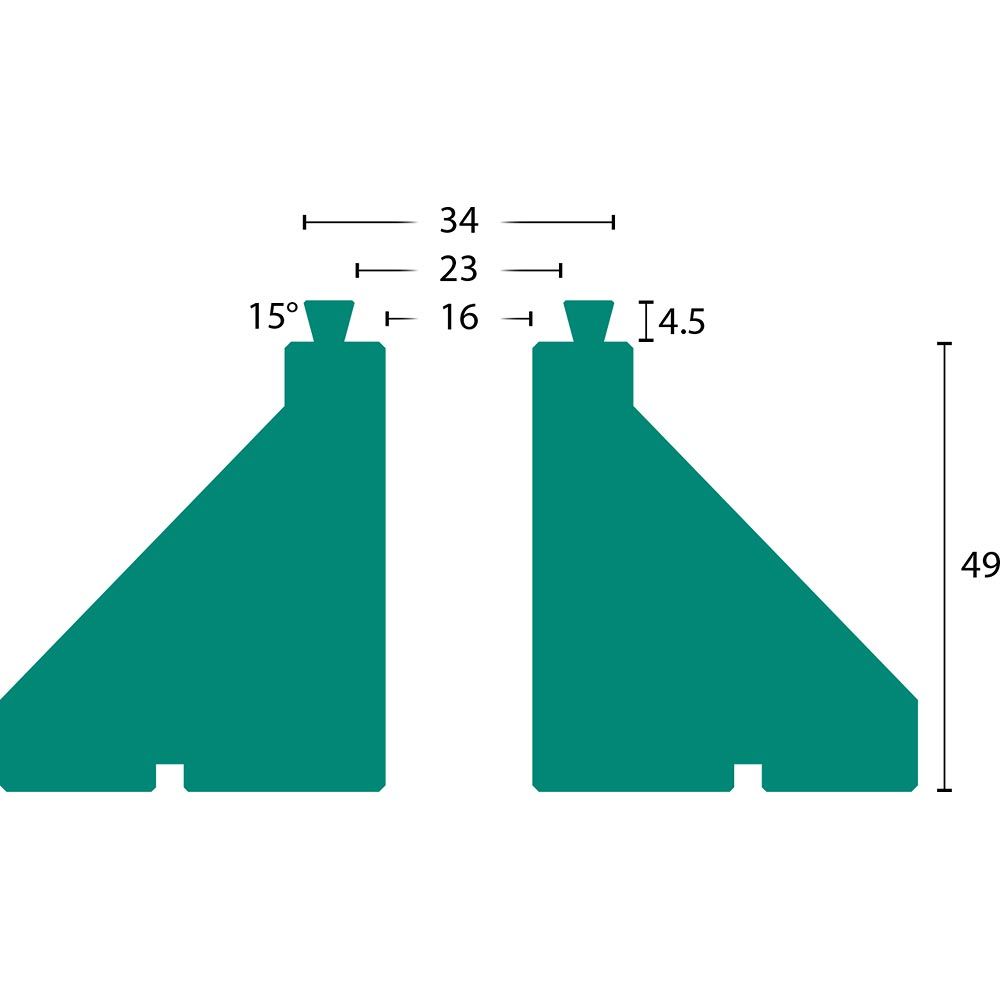

Product Info The unique design of the O’Donnell Jaw allows access around the jaws for close-in tool work. The jaws are approximately 49mm tall, tapering to the nose. This tapering gives the jaws their advantage when working close. The centre bore forms a deep recess for holding long spigots and gives rock solid mounting when turning a long way from the headstock without tailstock support. The jaws are dovetailed both inside and outside on the lip. The 25mm O’Donnell Jaw expands into a 34mm dovetailed recess, and contracts onto a 23mm dovetail or 16mm spigot. The Axminster chuck offers plenty of leeway; externally 29mm to 46mm and internally 17mm to 34mm dovetail or 10mm to 28mm spigot. Made from stainless steel to protect against corrosion. Suitable for GK/SK100 and SK114 chucks only. As with all our dovetail jaws they simply bolt onto the Accessory Mounting Jaws.
