Axminster O’Donnell Dovetail Jaws – 38mm

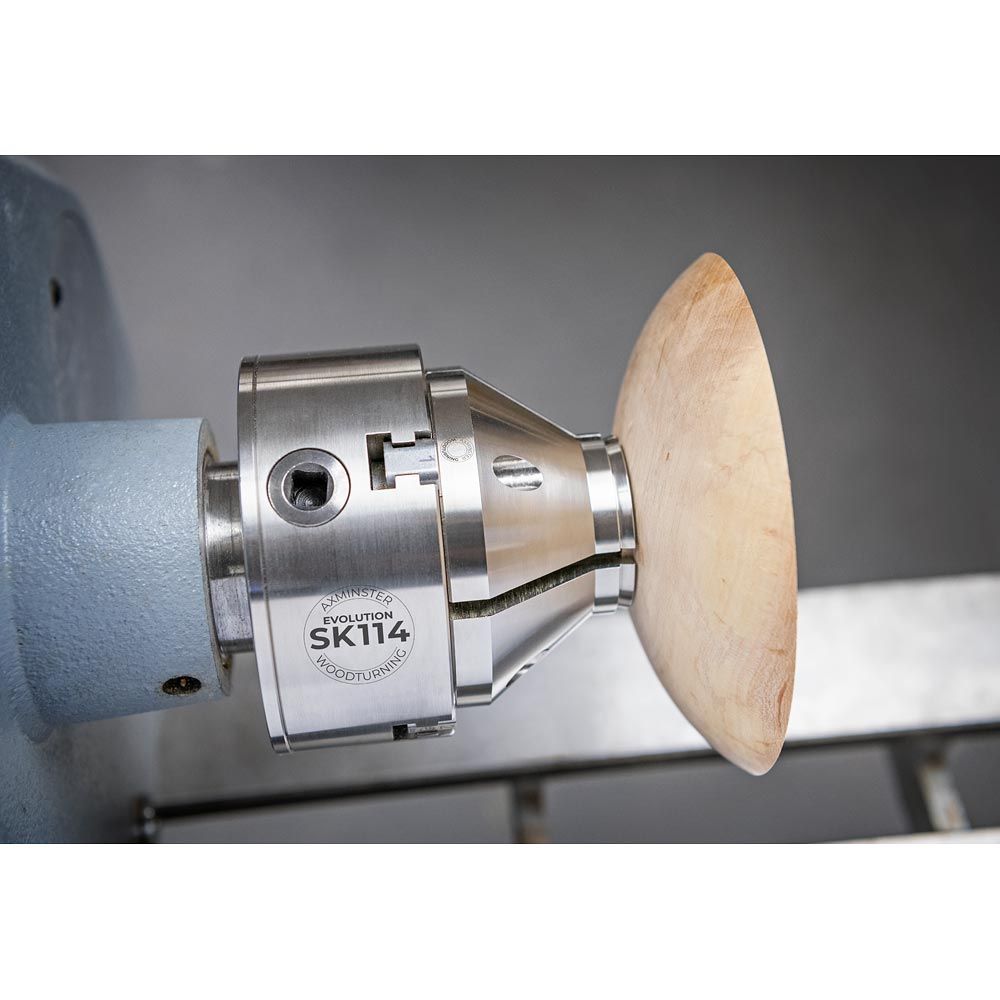

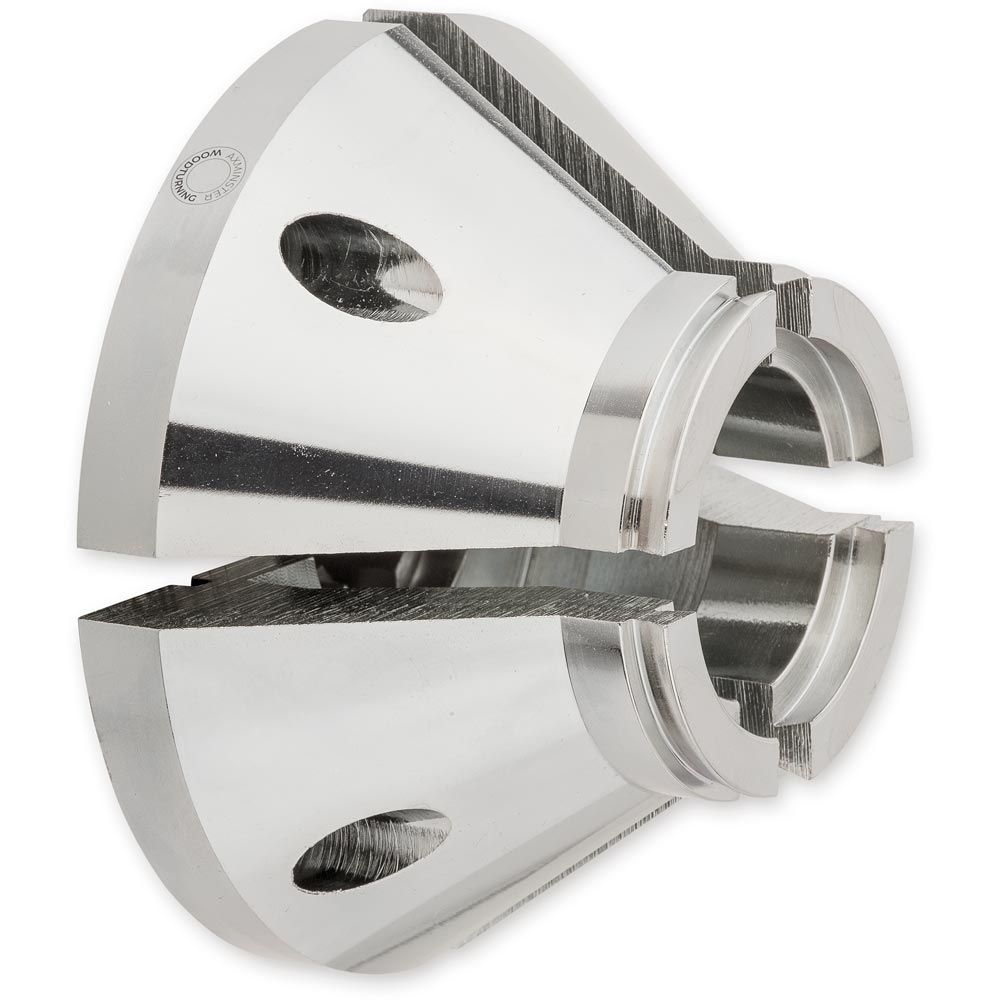

Product Info The unique design of the O’Donnell Jaw allows access around the jaws for close-in tool work. The jaws are approximately 49mm tall, tapering to the nose. This tapering gives the jaws their advantage when working close. The centre bore forms a deep recess for holding long spigots and gives rock solid mounting when turning a long way from the headstock without tailstock support. The jaws are dovetailed both inside and outside on the lip. The 38mm O’Donnell Jaw expands into a 52mm dovetailed recess, and contracts onto a 40mm dovetail or 33mm spigot. The Axminster chuck offers plenty of leeway; externally 49mm to 66mm and internally 35mm to 50mm dovetail or 28mm to 43mm spigot. Made from stainless steel to protect against corrosion. Suitable for GK/SK100 and SK114 chucks only. As with all our dovetail jaws they simply bolt onto the Accessory Mounting Jaws.
