Solar Water Buggy – Mobile Livestock Watering System

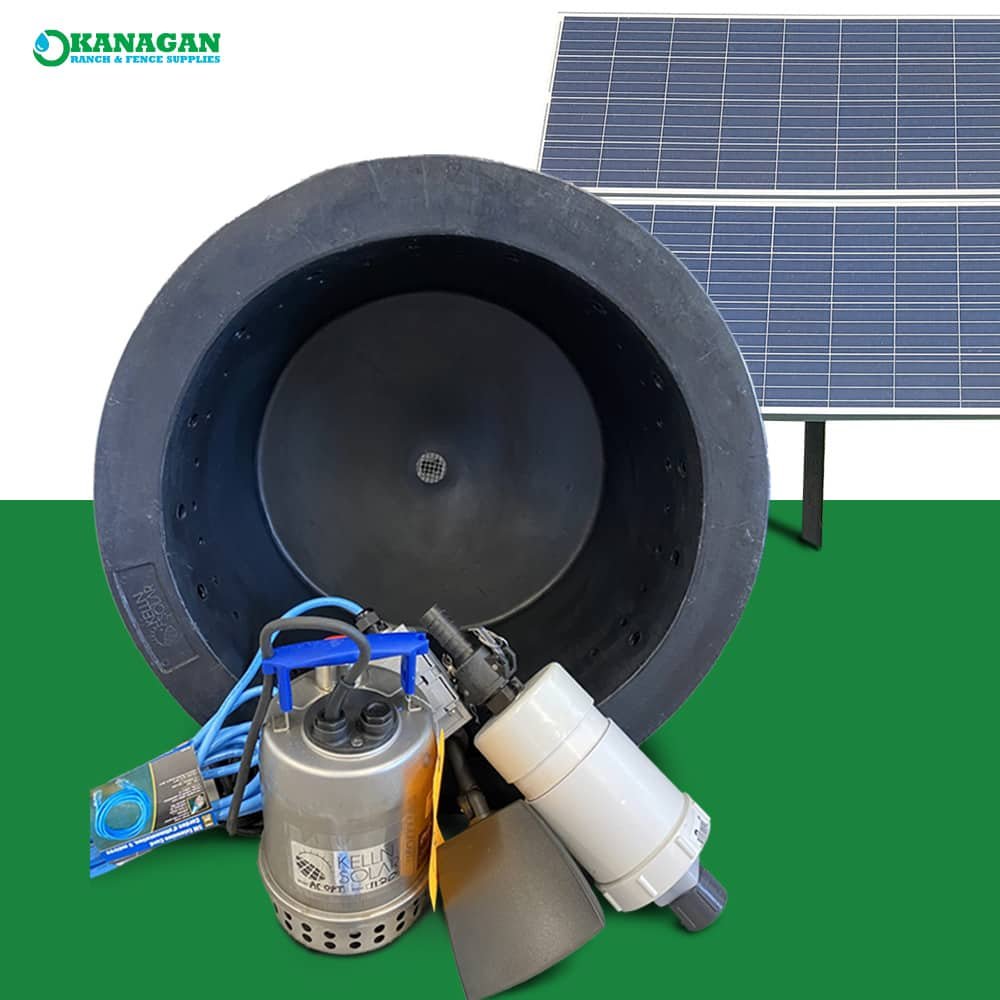

Maximum lift of 72 feet. At 5 feet lift, the system delivers 18 gallons per minute; at 72 feet lift, it maintains an efficient 8 gallons per minute flow rate.   The Solar Water Buggy is a fully mobile, high-capacity solar-powered water delivery system designed for ranchers, farmers, and livestock operations needing dependable off-grid water access. This versatile system delivers consistent performance for both shallow and deep-water applications, from wells and creeks to ponds and dugouts. Engineered for durability, efficiency, and mobility, the Solar Water Buggy features a rugged 3/16″ Canadian steel frame, a 275-gallon trough, and a heavy-duty 1,500 lb axle with 12″ utility tires for easy field transport. The 4 × 100W solar panels (400W total) are angle-adjustable for maximum solar gain, while the 48V MPPT charge controller ensures optimal solar output and smooth operation, either solar direct or powered through four 12V AGM deep-cycle batteries for cloudy conditions. Its multi-use solar pump fits a 4″ well casing or operates with a float assembly for ponds, making it ideal for various ranch setups. Equipped with low-water and full-trough sensors, adjustable pump speed, and a locking electronics box, it’s a safe, low-maintenance, and ready-to-use solution for livestock watering and rotational grazing systems. Designed and built in Armstrong, British Columbia, using 100% Canadian steel—built to last for the toughest ranch conditions.   FEATURES   Solar-powered off-grid water buggy with 72 ft lift capability Delivers up to 18 GPM at 5 ft lift and 8 GPM at 72 ft lift Rugged 3/16″ steel frame with 275-gallon trough Heavy-duty 1,500 lb axle with 12″ utility tires 4 × 100W solar panels (400W total) – adjustable for max efficiency 48V MPPT charge controller – supports solar direct or battery use Four 12V AGM deep-cycle batteries – maintenance-free backup Pump speed adjustable via on/off control switch Multi-use pump fits 4″ well casing or float assembly Includes 100 ft of 1½″ flexible suction hose and solar pump wire Low-water and trough-full sensors for auto operation Locking box for solar electronics and pump protection Two jack stands and removable hitch for transport Ideal for rotational or seasonal grazing applications   SYSTEM SPECIFICATIONS   Specification Details System Model Solar Water Buggy System Type Mobile Solar Water Delivery System Operating Voltage 48 VDC Max Lift 72 ft (21.9 m) Flow Rate 18 GPM @ 5 ft lift / 8 GPM @ 72 ft lift Solar Array 4 × 100W Panels (400W Total) Controller Type 48V MPPT Charge Controller Battery Bank 4 × 12V AGM Deep-Cycle Batteries Trough Capacity 275 Gallons (1040 L) Frame Construction 3/16″ Canadian Steel with Grey Painted Finish Axle & Tires 1,500 lb Axle with 12″ Utility Tires Safety Features Low-Water and Trough-Full Sensors Warranty 2 Years Limited Warranty   INCLUDED SYSTEM COMPONENTS Solar pump with inlet hose and wiring 4 × 100W solar panels (400W total) 48V MPPT charge controller 4 × 12V AGM deep-cycle batteries 275-gallon trough with low-water and full-trough sensors 100 ft of 1½″ flexible suction hose and 100 ft of pump wire and 100 ft of low water sensor Locking solar equipment box Two jack stands and removable hitch SHIPPING INFORMATION Contact us for a customized shipping quote Ships fully assembled or partially crated depending on destination Manufactured and shipped from Armstrong, BC, Canada
