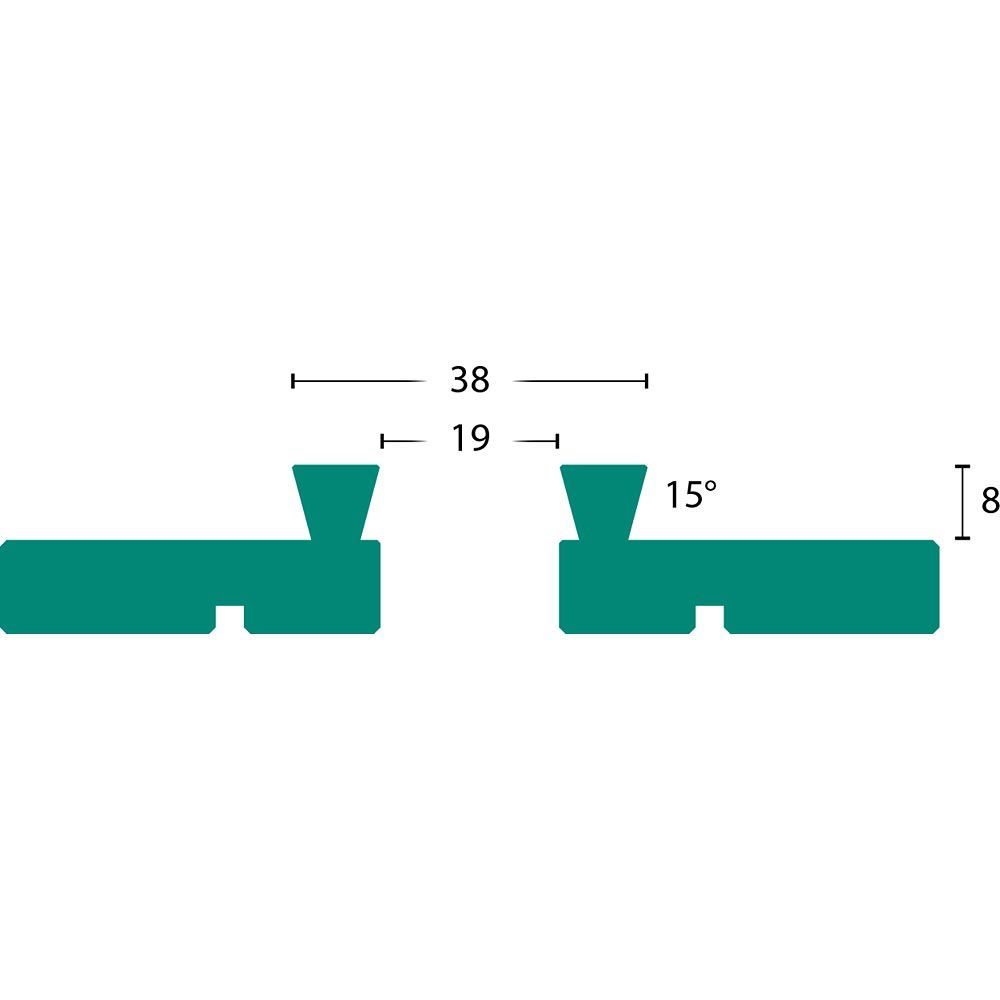

Product Info These versatile work holding jaws for smaller scale turnery have internal and external dovetails. The SK100 Dovetail Jaw Type F will close down onto a 19mm dovetail spigot or expand into a 38mm dovetailed recess. There is of course greater variation due to the chuck’s scroll mechanism. In reality, the internal range is 11mm to 29mm and the external 31mm to 48mm. However, at more extreme diameters the jaws are no longer form a true circle. These jaws are suitable for the GK/SK100 and SK114 chucks. Made from stainless steel to protect against corrosion. As with all our dovetail jaws they simply bolt onto the Accessory Mounting Jaws.
