Musical Fidelity V90-BHA Balanced Headphone Amplifier

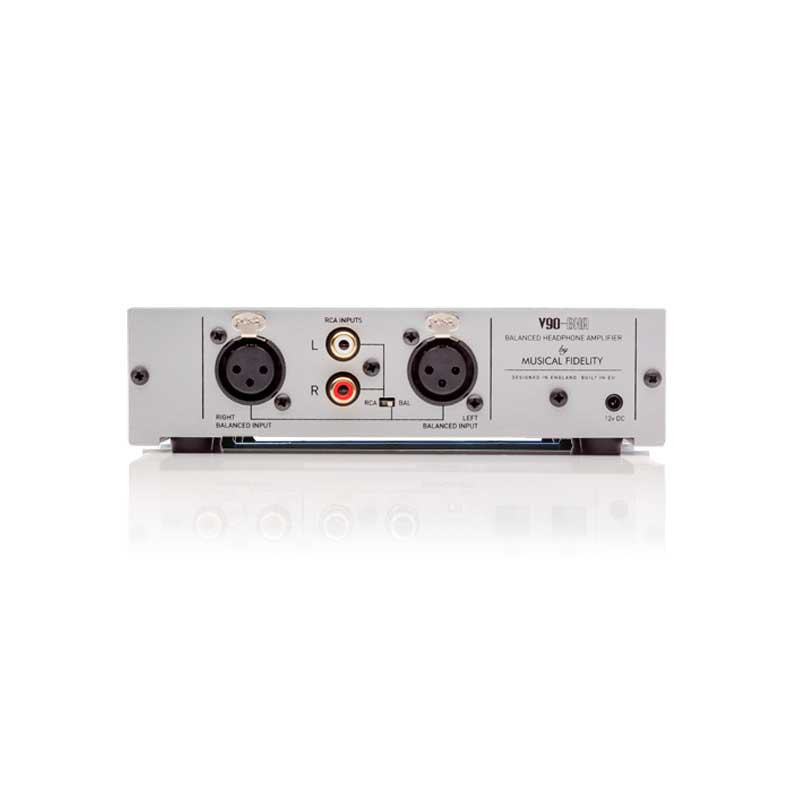

Description Musical Fidelity V90-BHA Balanced Headphone Amplifier By using balanced connections in the Musical Fidelity V90-BHA Balanced Headphone Amplifier, rather than single-ended audio, RF interference on the audio signal is effectively cancelled out, resulting in an exceptionally low noise level and a far more accurate sound. The V90-BHA Balanced Headphone Amplifier offers high input impedance and low output impedance, to allow connection to most sources and the ability to easily drive the vast majority of headphones (from 10 ohms to 600 ohms). Distortion is very low, typically less than 0.005% across the audio band. The V90-BHA also delivers an outstanding signal-to-noise ratio of better than 109 dB (‘A’ weighted). The frequency response is 20 Hz to 80 kHz (-1dB). Inputs include both balanced XLR and single-ended RCA, while outputs include a dedicated four pin Mini XLR balanced connector and a 3.5mm headphone jack output, making the V90-BHA a very versatile headphone amplifier. The V90-BHA’s combination of very low distortion, extremely low noise, flat frequency response and low output impedance gives a smooth, effortless sound quality normally reserved for far more expensive products. The V90-BHA Balanced Headphone Amplifier is also designed to effectively run as a dual mono amplifier when in balanced mode, which minimises cross-channel interference and maximises stereo separation. The V90-BHA features some of Musical Fidelity’s finest electronics, in a tiny package that looks great, with a front panel and cover of custom-made extrusions, finished in fine-texture moonstone.   View Product Brochure >>    View Owners Manual >>   V90-BHA In Brief Outstanding value, fully-balanced headphone amplifier Balanced and single-ended inputs (automatically converts single to balanced) Great technical performance Wide bandwidth: 10Hz-35kHz at 0, -3dB Very low noise Very low distortion: < 0.005%, 20Hz to 20kHz Outstanding channel separation Powerful output into 32 ohms Beautiful, considered build quality   Specifications Performance Power: 0.75wpc into 32Ohms Output Impedance: 22 Ohms (Suitable for 10-600 Ohm headphones) Input Impedance: 25 KOhms THD( noise): <0.005% typical (20Hz to 20kHz) Signal to Noise Ratio: >109dB ‘A’-weighted Frequency Response: 0, –3dB, <10Hz to 37 kHz Inputs 1x pair RCA / Phono Line Level 1x pair XLR inputs 1.3mm Power Socket Outputs 1x Stereo mini XLR 1x Stereo Headphone Jack – 3.5mm / 1/8” General Dimensions – WxHxD (mm): 170 x 47 x 117 Weight (unpacked / packed): 600g / 1.1 kg Supplied Accessories 1x 12v 500mA DC power supply
