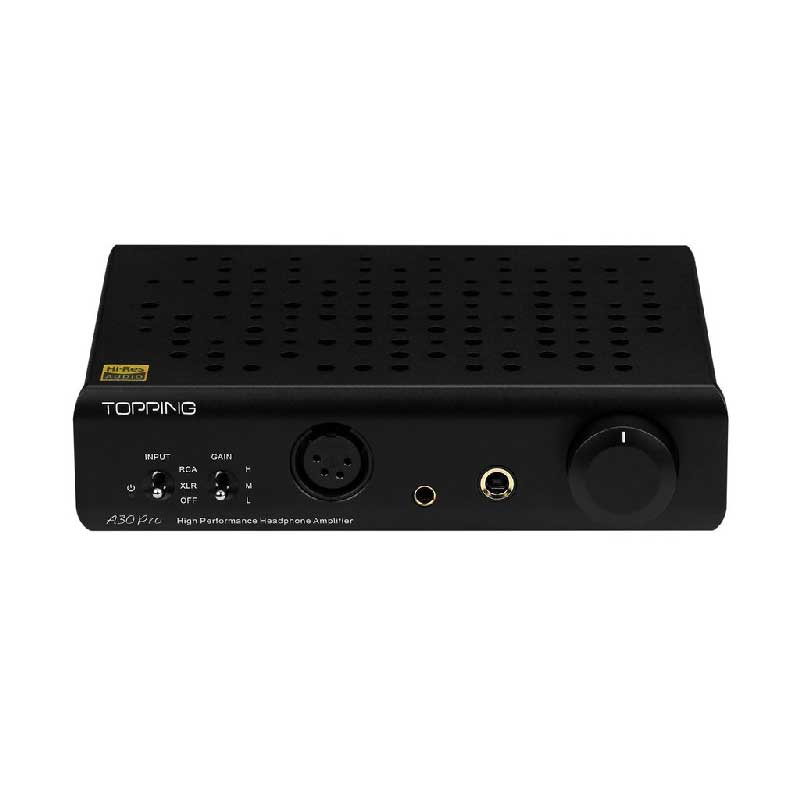

Topping A30Pro Balanced Headphone Amplifier

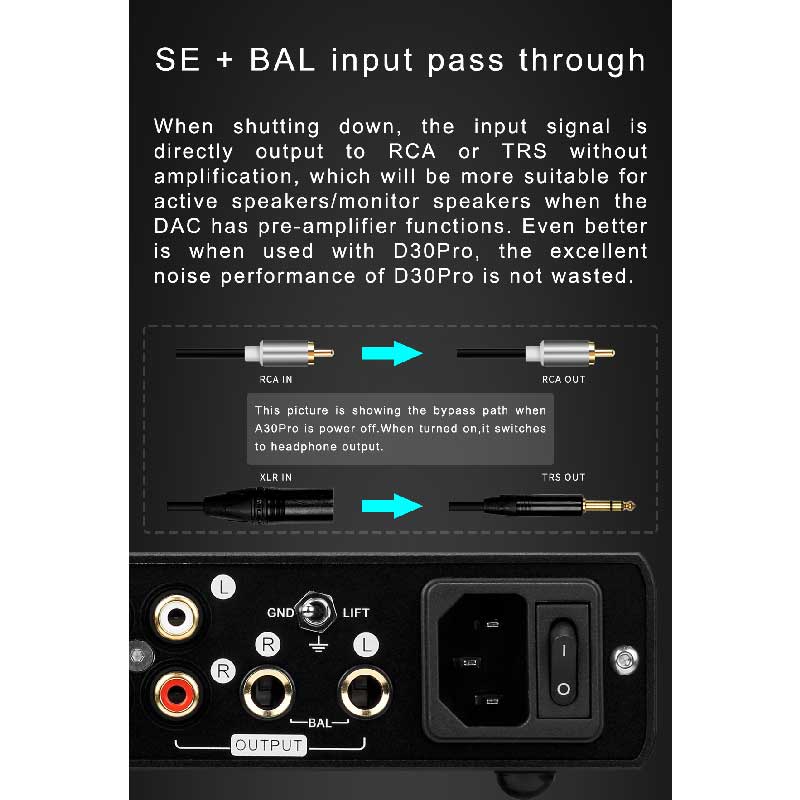

Description Topping A30Pro Balanced Headphone Amplifier   View Topping Product Manuals >>   Features Bypass output when power off Hi-Res Audio Balanced input 4-Pin-XLR 4.4mm 6.35mm output 3 step gain settings NFCA Module Machined aluminium shell APX555B limited our measurement again The THD N of A30Pro is no higher than 0.00006%, which means the A30Pro accurately restores 99.99994% of the original sound, what you get is what you input. The noise from the A30Pro is low enough, so APX555B limits the noise measurement of it, resulting in the need to amplify the noise of A30Pro by 100 times for indirect measurement. Pushing the envelope A30Pro uses the new specifically redesigned NFCA based circuit is optimized for terrific single ended performance. Massive paralleled high performance audio opamp architecture along with UHGF (Ultra High Gain Feedback) technology provides excellent DC and AC performance. High output current drive capability allows the amp driving low impedance headphones with ease. Ultra-low noise of 0.3uV is miles ahead of the competition, giving an absurdly high dynamic range of 145dB and no audible noise and darkest background for the most sensitive IEMs. Incredible output power The new specifically redesigned NFCA based circuit is optimised for terrific single ended performance. Huge output power and margin bring excellent control ability, and there are no more headphones hard to drive. 4-PIN-XLR 4.4mm 6.35mm Output Since then, buying headphones does not have to consider whether the plug matches the headphone amplifier, because the A30Pro already provides you all in a compact body, including 4-PIN-XLR, 4.4mm, 6.35mm. Adapt to various sensitivities A30Pro provides 3 step gain settings, which can easily adapt to the huge sensitivity span from IEMs to high impedance and full size over-ears. Just connect the earphones and leave the rest to the A30Pro. SE BAL input pass through When shutting down, the input signal is directly output to RCA or TRS without amplification, which will be more suitable for active speakers/monitor speakers when the DAC has pre-amplifier functions. Even better is when used with D30Pro, the excellent noise performance of D30Pro is not wasted. Say good bye to the ground loops noise When multiple equipment are used, RCA connection may encounter ground loop noise. A30Pro introduces a GND/LIFT switch as the solution. When in normal use, set it to GND; when encountering ground loop noise, switch to LIFT to change the ground point of the A30Pro from the it’s chassis to other equipment which it is connected to. Ground loop noise will disappear. Quiescent current A30Pro is designed with ample quiescent current. It will fully work in Class A operation when the headphone impedance is greater than 250 Ohms. D30Pro is the best DAC for A30Pro 4 x CS43198, sound of quad DAC. THD N<0.00009%, extremely low jitter for all inputs.   Specifications GENERAL SPECIFICATIONS Dimension 17.4cm x 13.8cm x 4.5cm Weight 870g Power 100-240VAC 50Hz/60Hz Gain L/M/H Amplifier inputs 1 x XLR (L R) 1 x RCA (L R) Headphone Amplifier Outputs 1 x 6.35mm headphone output jack 1 x XLR headphone output jack 1 x 4.4mm headphone output jack Pass through outputs 1 x 6.35mm TRS(L R) 1 x RCA (L R) Power Consumption <9.0W A30PRO HEADPHONE AMPLIFIER SPECIFICATIONS SE IN BAL IN THD N @ 1kHz A-wt <0.00007% @Output=3.5W(32Ω) <0.00007% @Output=3.2W(32Ω) <0.00006% @Output=90mW(300Ω) <0.00006% @Output=86mW(300Ω) THD @20-20kHz 90 kBW <0.00008% @Output=760mW(32Ω) <0.00008% @Output=760mW(32Ω) <0.00007% @Output=81mW(300Ω) <0.00007% @Output=81mW(300Ω) SNR @MAX OUT 1kHz A-wt 145dB 140dB SNR @50mV OUT 1kHz 104dB 104dB Dynamic Range @1kHz A-wt 145dB 140dB Frequency Response 20Hz-40kHz(±0.05dB) 20Hz-40kHz(±0.1dB) Output Level 34Vpp @G=L 6.6Vpp @G=L 34Vpp @G=M 34Vpp @G=M 45Vpp @G=H 45Vpp @G=H AP Measured Noise Level @A-wt <0.7uVrms @G=L <0.7uVrms @G=L <0.7uVrms @G=M <0.7uVrms @G=M <1.2uVrms @G=H <1.2uVrms @G=H Actual Noise Level @A-wt <0.3uVrms @G=L <0.3uVrms @G=L <0.3uVrms @G=M <0.3uVrms @G=M <0.9uVrms @G=H <1.1uVrms @G=H Channel Crosstalk @1kHz -106dB -101dB IMD CCIF @(18kHz 19kHz) -116dB -116dB IMD SMPTE @(60Hz 7kHz) -110dB@SMPTE4: 1 -110dB@SMPTE4: 1 -115dB@SMPTE1: 1 -116dB@SMPTE1: 1 Input Sensitivity 60Vrms @G=L 60Vrms @G=L 12.6Vrms @G=M 12.6Vrms @G=M 2.7Vrms @G=H 2.7Vrms @G=H Gain -14dB @G=L -14dB @G=L 0dB @G=M 0dB @G=M 14dB @G=H 14dB @G=H Output Impedance <0.1 Ω <0.1 Ω Output Power 6000mW x 2 @16 Ω THD N<0.1% 5500mW x 2 @32 Ω THD N<0.1% 840mW x 2 @300 Ω THD N<0.1% Adapter Impedance >8 Ω
